Q-switch Laser Picomaster

1. 1. Product Specification

      1)  Laser wavelength: 1064nm ±10%, 532nm ±10%

      2)  Laser medium:  Nd;YAG

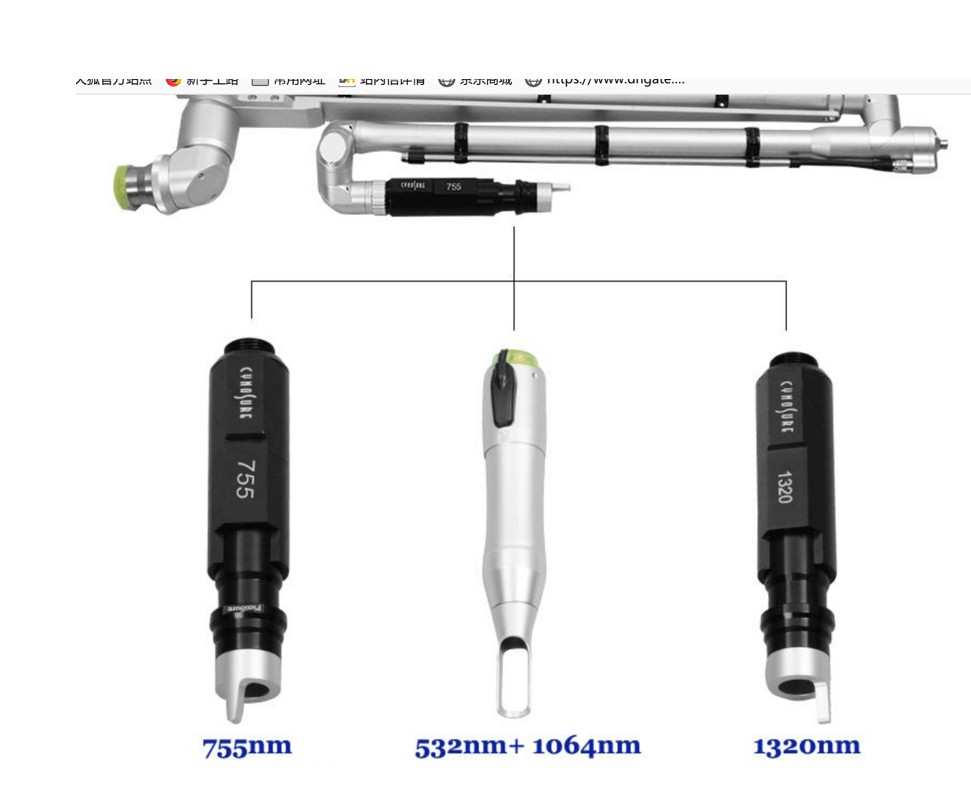

      3)  Laser delivery method: Articulated Arm

      4)  Laser irradiation diameter: Normal Zoom: 2mm~10mm

                            MLA: 8~10mm

Collimated: 8mm

      5)  Laser output:  1064nm Normal mode: 100~800 mJ±20%

                         532nm Normal mode: 50~400 mJ±20%

                         1064nm MLA mode: 100~800 mJ±20%

                         532nm MLA mode: 50~400 mJ±20%

                         1064nm Collimated mode: 100~800 mJ±20%

532nm Collimated mode: 50~400 mJ±20%

      6)  Pulse width: Within 500 ~ 600ps

      7)  Type and degree of protection against electric shock: Class 1 equipment / Type B equipment

      8)  Equipment Size: 450 × 1080× 1930 (WDH) (Unit: mm)

      9)  Weight: 110kg

     10)  Cooling system: Water-cooled

     11)  Rated input: 220V~60Hz

12)  Power Consumption: 4KVA
